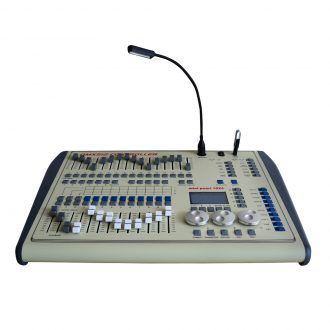

1024 DMX controller can control up to 96 fixtures. It is compatible with the library in Avolite Pearl R20 format and featured with built-in shape effects of pan/tilt circle, RGB rainbow, beam dimming wave, etc. 10 scenes and 5 built-in shapes can be output simultaneously. Sliders can be used to output scenes and adjust the intensity of the dimmer channels in the scenes.
|
DMX channel |
1024 |
|
Fixture |
96 |
|
Channels for each fixture |
40 primary + 40 fine tune |
|
Library |
Avolite Pearl R20 library supported |
|
Re-patched Fixture address |
Yes |
|
Swop Pan/Tilt |
Yes |
|
Reversed channel output |
Yes |
|
Channel slope modification |
Yes |
|
Scene |
60 |
|
Scenes to run simultaneously |
10 |
|
Scene step |
600 |
|
Time control of scenes |
Fade in/out, LTP slope |
|
Shapes for each scene |
5 |
|
Scene and dimmer by slider |
Yes |
|
Interlocked scene |
Yes |
|
Button controlled scene |
Yes |
|
Shape generator |
Shapes of Dimmer, Pan/Tilt, RGB, CMY, Color, Gobo, Iris and Focus |
|
Shapes to run simultaneously |
5 |
|
Master slider |
Global, playback, fixture |
|
Real time blackout |
Yes |
|
Channel value by wheel |
Yes |
|
Channel value by slider |
Yes |
|
Dimmer by slider |
Yes |
|
USB Memory |
FAT32 supported |
|
|
|
