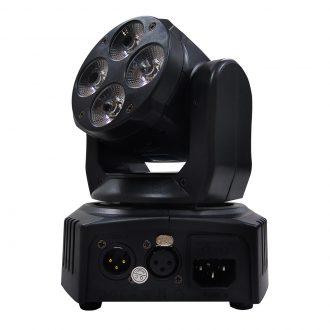

- Gener: LED Moving Head Light, Product
- : 25 July, 2018
1) Voltage: 90-230v? 50Hz-60Hz
2) Power consumption: 50W
3) LED: 4x10w? (RGBW 4 in 1) LEDs
4) Pan: 540°
5) Tilt: 180°
6) Shuttle: flash rate 0-10Hz
7) Dimmer:0-100% mechanic dimmer
8) Display: LCD display?
9) Control mode: DMX/Master-slave/Auto/Sound activated.? (?Pan/tilt invert option, Master /slave activated by sound at pre-programmed function)
10) Channel: 14/16 Channels
11) Tiptop environment temperature:?104°F(40°C)
12) Data input/output: 3pin XLR-connection、anode socket
13) Product size: 210*135*230mm
14) N.W: 3kg
DMX Channel:
Channel |
Function |
|
14CH |
16 CH |
|
1 |
Pan movement | Pan movement |
2 |
Tilt movement | Pan fine |
3 |
Pan/tilt speed | Tilt movement |
4 |
Dimmer/strobe | Tilt fine |
5 |
Strobe | Pan/tilt speed |
6 |
Red | Dimmer |
7 |
Green | Strobe |
8 |
Blue | Red |
9 |
White | Green |
10 |
Other channel | Blue |
11 |
Motor auto speed | White |
12 |
Other channel | Other channel |
13 |
lamp auto speed | Motor auto speed |
14 |
reset | Other channel |
15 |
Lamp auto speed | |
16 |
reset |
